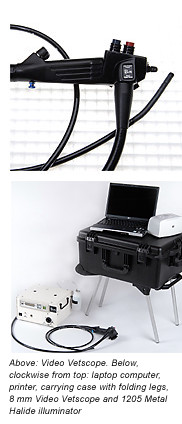

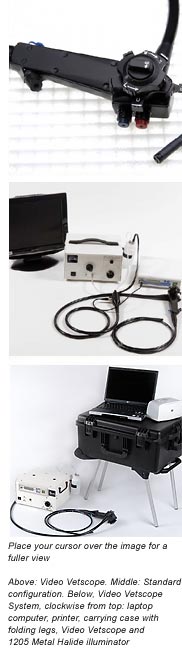

The 8mm Video Vetscope^TM

The Video Vetscope is the choice for field video endoscopy of intermediate-sized animals. The scope is made to interface with your laptop computer, and record images to your hard drive with the click of the mouse (which, based on feedback from vets, has proven easy to use, and the resultant stored data, valuable in keeping clients' informed of patients' status).

High-resolution optics and video chip
Ergonomically-positioned automatic air, water and suction valves for convenient one-hand use
2.0 mm biopsy/suction channel makes for easy instrument passage and suctioning functionality; and has a unique clean-out port for total channel access and thorough cleaning and disinfecting
Available with a flat-panel monitor
Backed by the VetVu one-year warranty

These instruments have been useful in
- evaluating respiratory problems
- evaluating upper and lower GI and reproductive tracts
- detecting bleeding sites and ulcers
- monitoring medication therapy
- locating obstructions and parasites
- removing foreign bodies

Working Length	150cm
Shaft Diameter	8mm
Distal End Diameter	8mm
Channel Size	2.0mm channel
End Tip Deflection	160° up / 160° down / 140° right / 140° left
Field of View	125°
Depth of Field	15 - 80mm
Resolution	PAL or NTSC
Photo Capability	Automatic or Manual
Irrigation/Lens-Cleaning	Automatic or Manual
System
Light Connection	Olympus/ACMI
Networks via Laptop Computer
Automatic Air Insufflation
Immersible, Except Umbilical
VetVu One Year Warranty, Parts and Workmanship, included
Extended warranty for 1 aditional year available

Your basic 8mm Video Vetscope System purchase includes:

8mm Video Vetscope
Video Processor
Cables
Metal Halide or Halogen Illuminator
Flat-Panel Monitor
Cleaning Accessories and Brushes
Syringe and Irrigation Tubing
Water Bottle Assembly
Leak Tester

Your 8mm Video Vetscope Portable System purchase includes:

8mm Video Vetscope
Metal Halide Illuminator with Built-in Video Processor
Cables
Laptop DVD Recorder
Cleaning Accessories and Brushes
Syringe and Irrigation Tubing
Water Bottle Assembly
Leak Tester
Carrying Case with Legs

These options are additional:

Photosmart Printer
Olympus Connection
Biopsy Forceps
Retrieval Basket

To purchase, contact VetVu directly or your area rep today. See related instruments, brushes and adapters.
