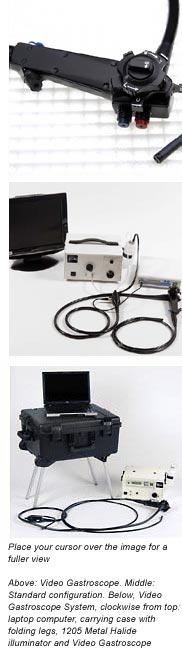

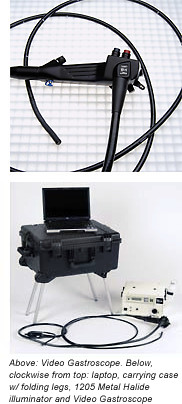

The Video Gastroscope^TM

Using the latest digital color CCD sensor and wide-angle optics, VetVu's Video Gastroscope is a high-quality imaging device that will help you solve your patients' health problems. Due to input from veterinary practitioners, this endoscope's versatile design and availability in 1.5M or 3M lengths meet a wide range of endoscopic needs. It is available in PAL or NTSC and with an Olympus or ACMI adapter.

High-resolution optics and video chip
Ergonomically-positioned automatic air, water and suction valves for convenient one-hand use
2.8 mm biopsy/suction channel makes for easy instrument passage and suctioning functionality; and has a unique clean-out port for total channel access and thorough cleaning and disinfecting
Available with a flat-panel monitor
Backed by the VetVu one-year warranty

These instruments have been useful in
- evaluating respiratory problems
- evaluating upper and lower GI and reproductive tracts
- evaluating and treating equine ulcers
- detecting bleeding sites and ulcers
- monitoring medication therapy
- locating obstructions and parasites
- removing foreign bodies

Working Length	150/300cm
Shaft Diameter	10.5mm
Distal End Diameter	10.5mm
Channel Size	2.8mm
End Tip Deflection	160° up / 160° down / 140° right / 140° left
Field of View	125°
Depth of Field	15 - 80mm
Resolution	PAL or NTSC
Automatic Air Insufflation
Irrigation/Lens-Cleaning	Automatic or Manual
Light Connection	Olympus/ACMI
Immersible, Except Umbilical
Photo Capability	Automatic or Manual
VetVu One Year Warranty, Parts and Workmanship, included
Extended warranty for 1 aditional year available

Your basic Video Gastroscope System purchase includes:

Video Gastroscope
Video Processor
Cables
Metal Halide or Halogen Illuminator
Flat-Panel Monitor
Cleaning Accessories and Brushes
Syringe and Irrigation Tubing
Water Bottle Assembly
Leak Tester

Your Video Gastroscope Portable System purchase includes:

Video Gastroscope
Metal Halide Illuminator with Built-in Video Processor
Cables
Laptop DVD Recorder
Cleaning Accessories and Brushes
Syringe and Irrigation Tubing
Water Bottle Assembly
Leak Tester
Carrying Case with Legs

These options are additional:

Photosmart Printer
Olympus Connection
Biopsy Forceps
Retrieval Basket

To purchase, contact VetVu directly or your area rep today. See related instruments, brushes and adapters.
