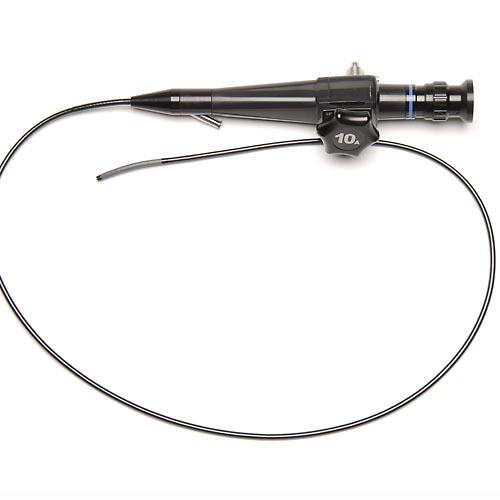

VFS-10A

Ideal for testing small animals in university labs. Its 1mm operating channel, makes the VFS-10A suited for bronchoscopy on feline and canine patients. The VFS-10A features four-way articulation and is fully immersible to make cleaning and disinfecting easy. The VFS-10A is backed by the VetVu one-year warranty.

Working Length	100cm
Shaft Diameter	4.5mm
Channel Size	1.3mm
End Tip Deflection	130° left / 130° right / 160° down / 100° up
Inside Bend Radius	3.8cm
Field of View	95° minimum (air)
Depth of Field	5 - 50mm
Eyepiece Magnification	30x
Small Animal Endoscopic Procedures	Bronchoscopy, Gastroscopy
Video Capability	Connect to CCD Camera
VetVu One Year Warranty, Parts and Workmanship, included
Extended warranty for 1 aditional year available

Your purchase includes these accessories:

Detachable Light Guide
Replacement Luer Cap
Carrying Case
Air/Suction Tubing
Cleaning Brush
Accessory Inlet Valve
ETO Vent Cap
Leakage Tester

To purchase, contact VetVu directly or call Butler Schein at 888-691-2724 today. See related instruments, brushes and adapters.
